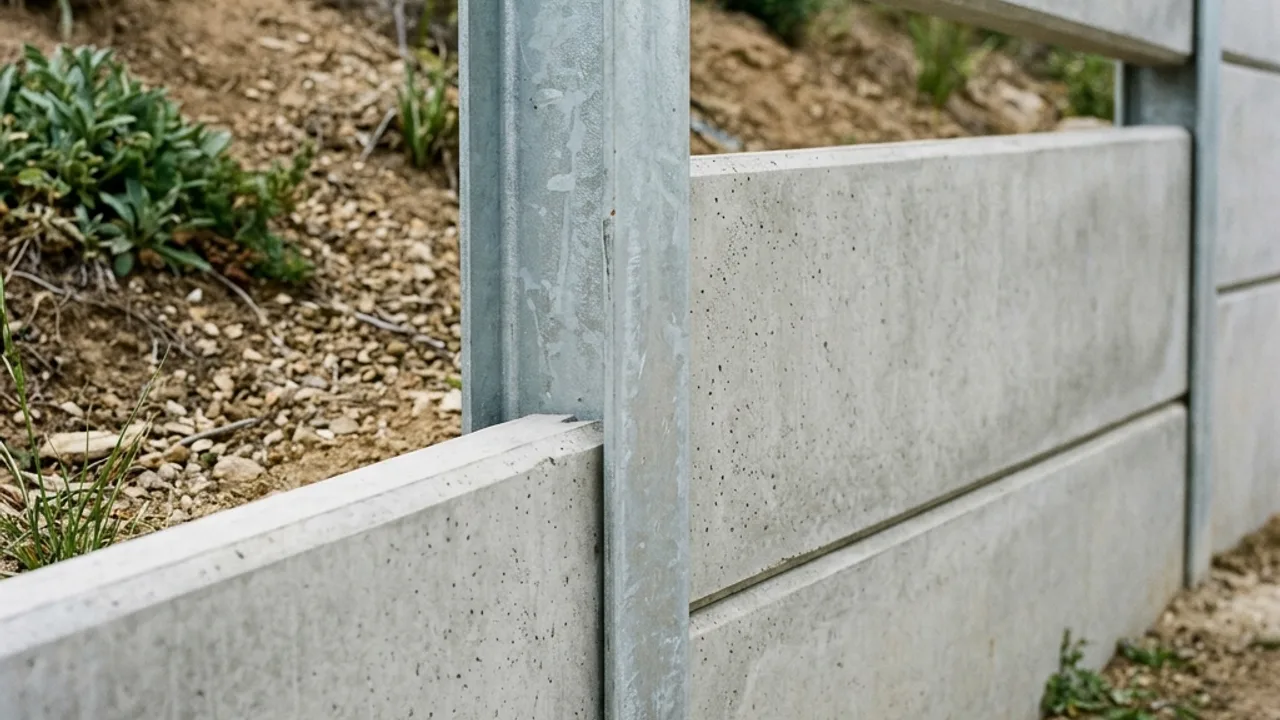

Galvanised or concrete posts with precast concrete panels slotted between them - a fast, consistent-finish system widely used across Perth for boundary and driveway retaining.

Tell us about your project

Share the details and we will help you take the next step with confidence.

Optional - it helps us point your enquiry the right way.

Your details are only used to arrange your enquiry. See our privacy policy.

Retaining Wall Perth: Post & Panel (Twin-Side) Retaining Walls

Post and panel - sold in Perth under names like twin-side - is a precast concrete system: galvanised or concrete posts go into the ground at set centres, and precast panels slot horizontally between them. It's a common choice for boundary and driveway retaining because the install is faster than block-by-block masonry and the finish is consistent from one end of the wall to the other. First contact usually covers the run length, the height needed, and whether the wall sits on a boundary (which can change the approval position).

What's included

Post installation

Posts set to the engineered spacing and embedment depth for the wall height and expected load.

Precast panel supply and install

Panels slotted between posts, stacked to the required wall height.

Capping and finishing

A capped top edge and, where wanted, a rendered or coloured panel finish.

Boundary and driveway retaining

The system's straight-run strength suits long boundary lines and driveway cut retaining specifically.

Post and panel pricing scales mainly with wall length and height. Panel finish (plain vs rendered) and post material are the other cost variables - ask for both quoted separately.

How the process works

  1. 1

    Measure the run

    Length, height and any grade change along the wall line.

  2. 2

    Boundary check

    Confirm boundary position - a wall on or near a boundary can carry a different approval position than one set back.

  3. 3

    Post and panel order

    Posts and panels supplied to the confirmed run and height.

  4. 4

    Install and finish

    Posts set, panels dropped in, capped and finished.

Why get post & panel (twin-side) retaining walls help through us

Consistent finish over a long run

Precast panels give the same face from end to end - useful where a wall runs the full length of a driveway or boundary.

Faster install than masonry

Post and panel typically goes up faster than block-by-block construction, which matters when a driveway or access is out of use during the build.

Engineered post spacing

Post spacing and embedment are set to the wall height and load, not a fixed guess.

Post & Panel (Twin-Side) Retaining Walls - Frequently Asked Questions

What is the difference between a limestone wall and a post and panel wall?
Limestone block walls are dry-stacked or mortared natural or reconstituted limestone blocks, a Perth-common look that suits the local geology. Post and panel (twin-side) walls use precast concrete panels slotted between posts - generally a faster install with a very consistent finish.
What is a post and panel (twin-side) retaining wall?
Post and panel, also sold as twin-side, is a precast concrete system where galvanised or concrete posts are set into the ground and precast panels slot between them - a common Perth alternative to limestone block, popular for its speed of install and consistent finish.
Why do retaining walls fail in Perth's sandy soils?
Perth's winter-dominant rainfall means backfill that drains fine all summer can saturate and build up hydrostatic pressure behind a wall in winter - a common failure driver on the sandy Swan Coastal Plain. Ag-drain, gravel backfill and geofabric behind the wall are structural requirements, not optional extras.
Do I need council approval for a retaining wall in Perth?
A building permit from your local government is generally needed once a wall retains more than 0.5 metres of ground, and a wall of any height can need one if it is tied to other building work, affects or protects adjoining land, or affects a boundary wall or dividing fence. Some councils, including Wanneroo and Melville, also count the combined height of tiered walls toward that 0.5 metre figure. Always confirm the exact threshold with your local government before starting work.
What is the Building Services Board and why does it matter for retaining walls?
The Building Services Board administers WA's building engineering practitioner registration scheme under the Building Services (Registration) Act 2011. It determines who is registered to certify engineering design work on building projects, including retaining walls that require an engineer.
